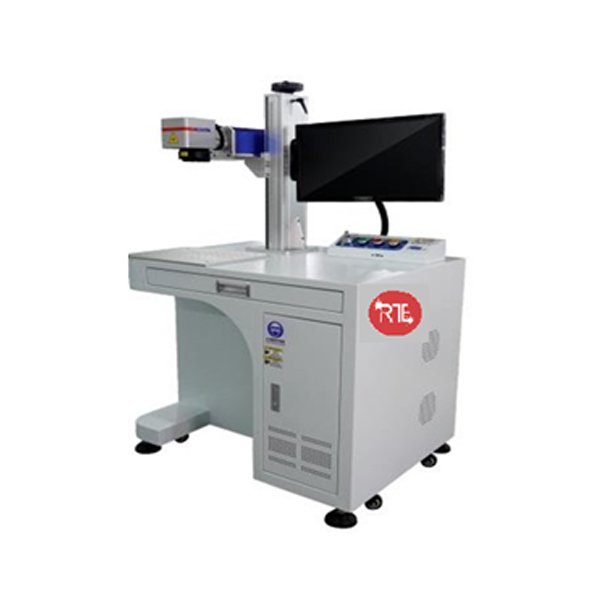

Metal Laser Marking Machine
Sample Display
| Technical Parameter | |||||
| No. | Items | Parameters | |||
| 1 | Model | RT-MLMM-20W | |||
| 2 | Laser Power | 20W | 30W | 50W | 100W |
| 3 | Laser Wavelength | 1064nm | |||
| 4 | Repeat Frequency | 20-100 KHZ | |||
| 5 | Beam Quality | M2<2 | |||
| 6 | Marking Range | 70*70mm-300*300mm ( Optional ） | |||
| 7 | Engraving Speed | ≤7000mm/s | |||
| 8 | Minimum Character | 0.15mm | |||
| 9 | Repeat Accuracy | ±0.002 | |||
| 10 | Power Supply | Single-Phase AC 220V/50Hz-60Hz | |||
| 11 | Machine Whole Power | 500W | |||
| 12 | Dimensions | 600*900*150MM | |||
| 13 | Gross Weight | 80KG | |||
| 14 | Control System | Win10 | |||
| 15 | Cooling System | Built-in Air Cooling | |||
| 16 | Control Interface | Standard USB | |||
| 17 | File Format | All Fonts/Glyphs of the WINDOWS | |||
